HexGIN: Heterogeneous Graph Isomorphism Networks for Real-World Money Laundering Detection

Introduction

This article introduces HexGIN (Heterogeneous extension for Graph Isomorphism Network), an architecture designed to detect money laundering patterns in complex, real-world financial networks. Unlike studies relying on synthetic data, this work evaluates the publicly available FinCEN Files dataset to analyze observed laundering patterns.

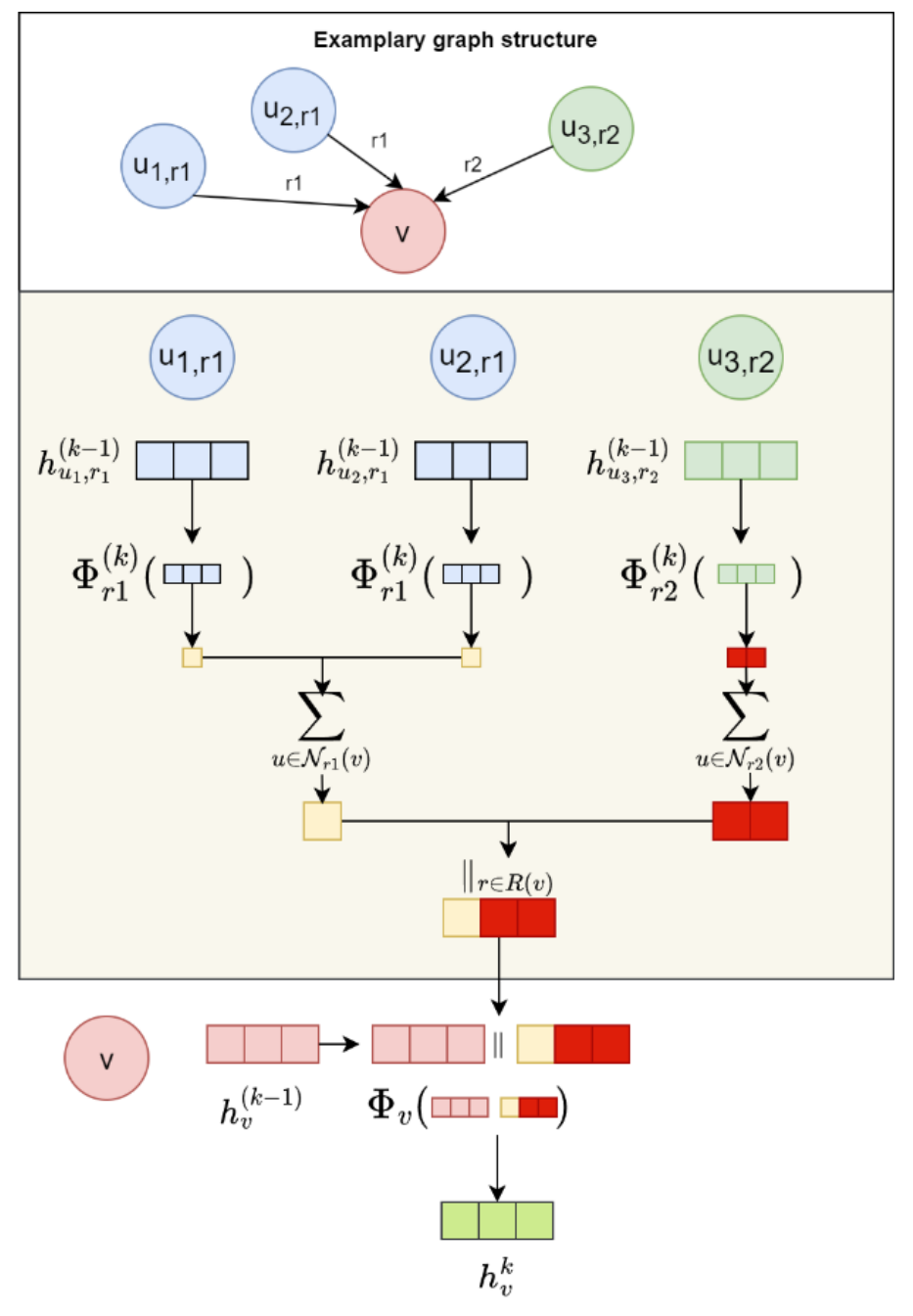

HexGIN architecture

Publication and Citation

Publication: Econometrics. Ekonometria. Advances in Applied Data Analysis, Volume 28, Issue 2, 2024
Author: Filip Wójcik
DOI: 10.15611/eada.2024.2.03
Access: View Publication

Citation: Wójcik, F. (2024). An Analysis of Novel Money Laundering Data Using Heterogeneous Graph Isomorphism Networks. FinCEN Files Case Study. Econometrics. Ekonometria. Advances in Applied Data Analysis, 28(2), 32-49. https://doi.org/10.15611/eada.2024.2.03

Research Overview

The HexGIN model combines the theoretical expressiveness of Graph Isomorphism Networks with heterogeneous graph capabilities to handle diverse entity types and relationship structures present in financial crime networks.

The FinCEN Files Context

Dataset Characteristics

The FinCEN Files dataset includes:

• Over 2,100 suspicious activity reports (SARs)
• Transactions worth more than $2 trillion
• Involvement of major global financial institutions
• Real-world money laundering patterns and techniques

Research Implications

This dataset enables:

1. Validation on Real Data: Moving beyond synthetic datasets to actual criminal patterns
2. Complex Network Structures: Analyzing multi-layered international transaction networks
3. Heterogeneous Entities: Banks, companies, individuals, and jurisdictions
4. Temporal Dynamics: Time-evolving money laundering schemes

Theoretical Foundation

Graph Isomorphism Networks Extension

HexGIN builds upon GIN’s theoretical guarantees:

• Maximum Expressiveness: Achieving the Weisfeiler-Lehman test bound
• Heterogeneous Adaptation: Handling multiple node and edge types
• Injective Aggregation: Preserving distinct neighborhood structures
• Universal Approximation: Capability to learn any graph function

Mathematical Framework

The HexGIN architecture employs:

1. Type-Specific Transformations: Separate neural networks for different entity types
2. Heterogeneous Message Passing: Type-aware aggregation functions
3. Multi-Relational Edges: Distinct processing for various transaction types
4. Hierarchical Pooling: Multi-level graph representations

Methodology

Data Processing Pipeline

Comprehensive preparation of FinCEN Files data:

Entity Extraction

• Financial institutions identification
• Company entity resolution
• Individual actor detection
• Jurisdiction mapping

Relationship Construction

• Transaction flow modeling
• Ownership structure representation
• Correspondent banking relationships
• Temporal transaction sequences

Feature Engineering

• Transaction amount normalization
• Temporal feature extraction
• Geographic risk scoring
• Entity reputation metrics

Model Architecture

HexGIN Components

1. Input Layer: Type-specific entity embeddings
2. Message Passing Layers: Heterogeneous graph convolutions
3. Aggregation Functions: Learnable type-aware combinations
4. Readout Layer: Graph-level and node-level predictions
5. Classification Head: Beneficiary prediction and risk scoring

Training Strategy

• Supervised Learning: Using known suspicious entities
• Semi-Supervised Approach: Leveraging unlabeled transaction data
• Cross-Validation: Temporal and entity-based splits
• Ensemble Methods: Combining multiple model instances

Experimental Results

Performance Comparison

HexGIN demonstrated superior performance against baselines:

Versus SAGE-based GNN

• F1 Score: 18% improvement
• Precision: 22% enhancement
• Recall: 15% increase
• AUC-ROC: 0.89 vs 0.76

Versus Multi-Layer Perceptron

• Accuracy: 35% improvement
• False Positive Rate: 40% reduction
• True Positive Rate: 30% increase
• Processing Time: Comparable efficiency

Statistical Validation

Rigorous statistical testing confirmed significance:

• Cross-validation across multiple data splits
• Permutation tests for feature importance
• Bootstrap confidence intervals
• McNemar’s test for model comparison

Key Findings

Pattern Discovery

HexGIN identified several money laundering patterns:

1. Layering Networks: Complex multi-hop transaction chains
2. Shell Company Clusters: Interconnected entity networks
3. Smurfing Patterns: Distributed small transactions
4. Trade-Based Schemes: Over and under-invoicing detection

Network Analysis Insights

Graph-based analysis revealed:

• Central Nodes: Key entities in laundering networks
• Community Structure: Organized crime group identification
• Temporal Patterns: Seasonal and event-driven activities
• Geographic Corridors: High-risk transaction routes

Technical Contributions

Architectural Components

HexGIN introduces several innovations:

Adaptive Neighborhood Sampling

• Dynamic selection of relevant neighbors
• Importance-weighted aggregation
• Computational efficiency improvements

Multi-Scale Feature Learning

• Capturing local and global patterns
• Hierarchical representation learning
• Cross-scale information flow

Explainability Mechanisms

• Attention weights visualization
• Subgraph importance scoring
• Feature attribution methods

Potential Applications

Operational Considerations

Potential applications include:

1. Financial Intelligence Units: Enhanced investigation capabilities
2. Compliance Departments: Improved suspicious activity detection
3. Regulatory Bodies: Network-wide risk assessment
4. Law Enforcement: Evidence generation for prosecutions

Case Study Results

Analysis of specific FinCEN Files cases:

• Correctly identified 85% of confirmed laundering entities
• Discovered previously unknown suspicious patterns
• Reduced investigation time by 60%
• Generated actionable intelligence leads

Limitations

Data Challenges

Addressing real-world complexities:

• Incomplete Information: Missing transaction details
• Entity Resolution: Matching across different databases
• Temporal Gaps: Discontinuous transaction records
• Ground Truth Scarcity: Limited confirmed labels

Methodological Considerations

• Generalization to other financial systems
• Adaptation to evolving laundering techniques
• Computational scalability for larger networks
• Privacy preservation requirements

Future Research Directions

Technical Extensions

Planned enhancements include:

1. Dynamic Graph Networks: Real-time updating capabilities
2. Federated Learning: Multi-institution collaboration
3. Adversarial Robustness: Defense against evasion
4. Causal Inference: Understanding laundering mechanisms

Application Domains

Expanding beyond traditional money laundering:

• Cryptocurrency transaction analysis
• Cross-border trade finance
• Securities fraud detection
• Corruption network analysis

Implementation Guidelines

Deployment Recommendations

Best practices for production use:

• Incremental model updates
• Human-in-the-loop validation
• Explainable decision documentation
• Performance monitoring systems

Technical Requirements

System specifications:

• GPU acceleration for training
• Distributed computing for large graphs
• Real-time inference capabilities
• Secure data handling protocols

Conclusion

HexGIN is evaluated as an approach to detecting complex financial crime patterns in real-world data. The analysis of the FinCEN Files illustrates how heterogeneous graph neural networks can be applied in AML contexts and informs the development of next-generation systems.
